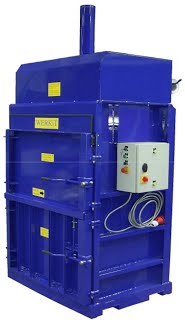

Vertical baler model V250
Description
When purchasing a Vertical Baler there is a wide variety of choice. With the Freedman Balers V250 there are features not found on any other baler, there is a double push system allowing the waste to breath and then re-compacting allowing more waste to be compacted per bale. The Auto cycle allows the operator more freedom, no levers to hold whilst operating, simply press the Start button and walk away.
There is an indicator light which tells you when the machine is compacting or retracting. The indicator tells you the door is closed and gives you a pre-set time to operate the button. The magnetic safety switch ensures that the machine cannot be operated with the door open.
The machine will only operate for that specific time required for that cycle making the machine more energy efficient that the majority of other machines on the market.
The machine is powered from standard 13 amp socket and does not start the motor at any time unless operating a function, a fault found with many of our competitors.
Specifications
- Motor: 3 kW (1.5 HP) Electric Motor, 4 Pole, Three Phase, 240v AC, 50 Hz, 6.69 Amps, IP54
- Pump: High efficiency External Gear Pump
- Cycle Time: Approx 45 Seconds
- Ram Pressure: Up to 22,000 lbs (10 tonnes) 10,000kg
- Cylinder : 101.6mm Bore x 70mm Rod x 800mm
- Filtration: 125 Micron Suction Strainer
- Oil type: EP 32 Grade Hydraulic Oil
- Control: Intelligent relay fully adjustable for all materials c/w regulated power supply to 24v dc
- Electrical Power: 415v AC 50 Hz will connect to a standard 3 pin – E, 32 amp Socket
Dimensions
- Loading Door Opening: 790mm x 1000mm (31” x 39”)
- Loading door Height: 915mm (36”)
- Overall Height: 1640mm (103.93”)
- Overall Depth: 1075mm (42.3”)
- Overall Width: 1335mm (52.55”)
- Depth with Door Open: 2075 (81.69 ”)
- Width with Door Open: 2330mm (91.73”)
- Shipping Weight: 75 kg approx
